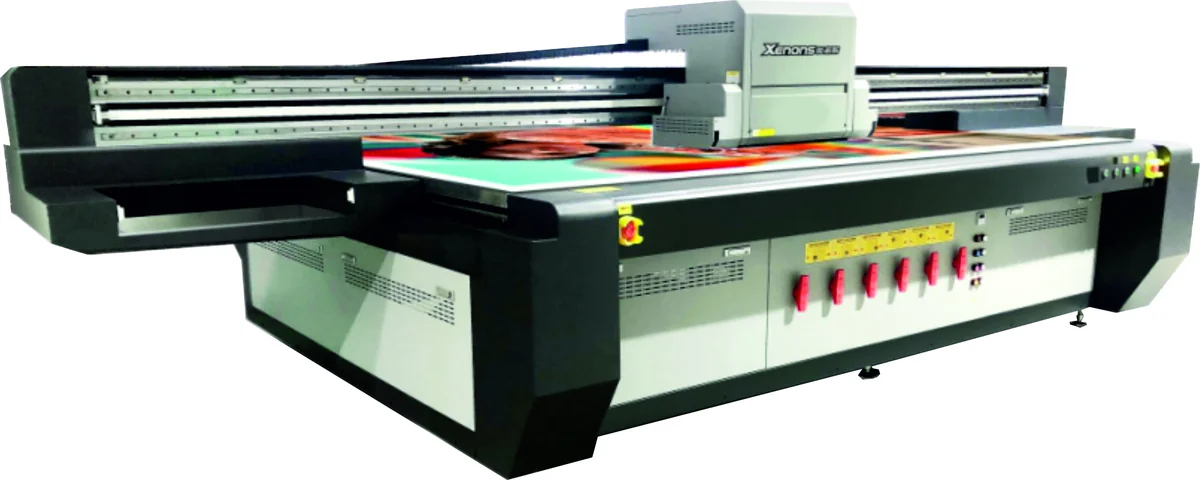

Xenons X3220 UV

Xenons X3220 Big Boy is an industrial LED UV flatbed printer designed for high-volume production on full-size sheets and heavy rigid materials. Its 3200 × 2000 mm working area allows large components to be printed without dividing the design into smaller sections.

Ask for a quote

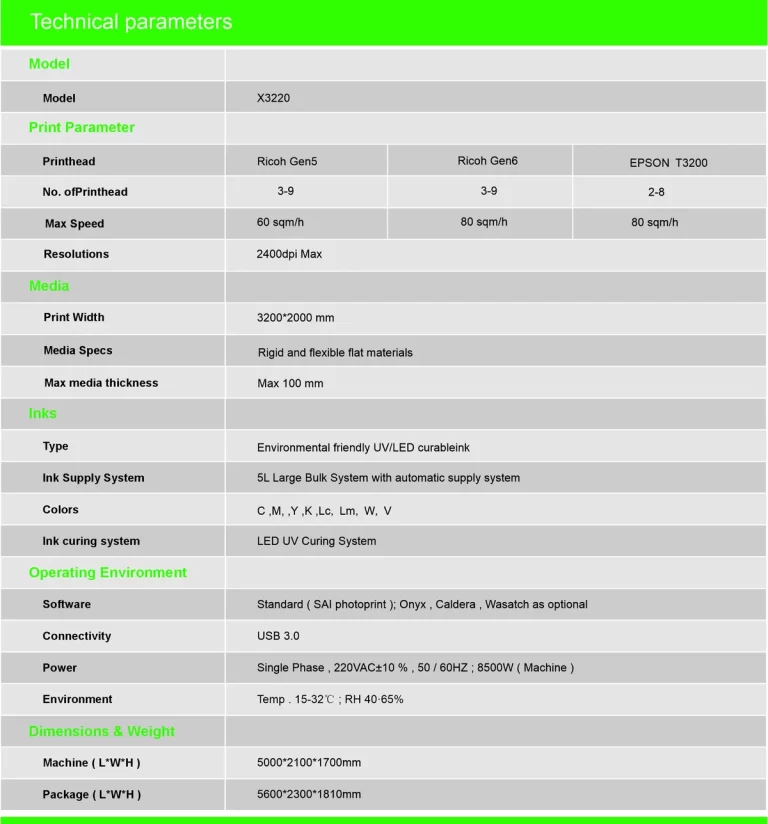

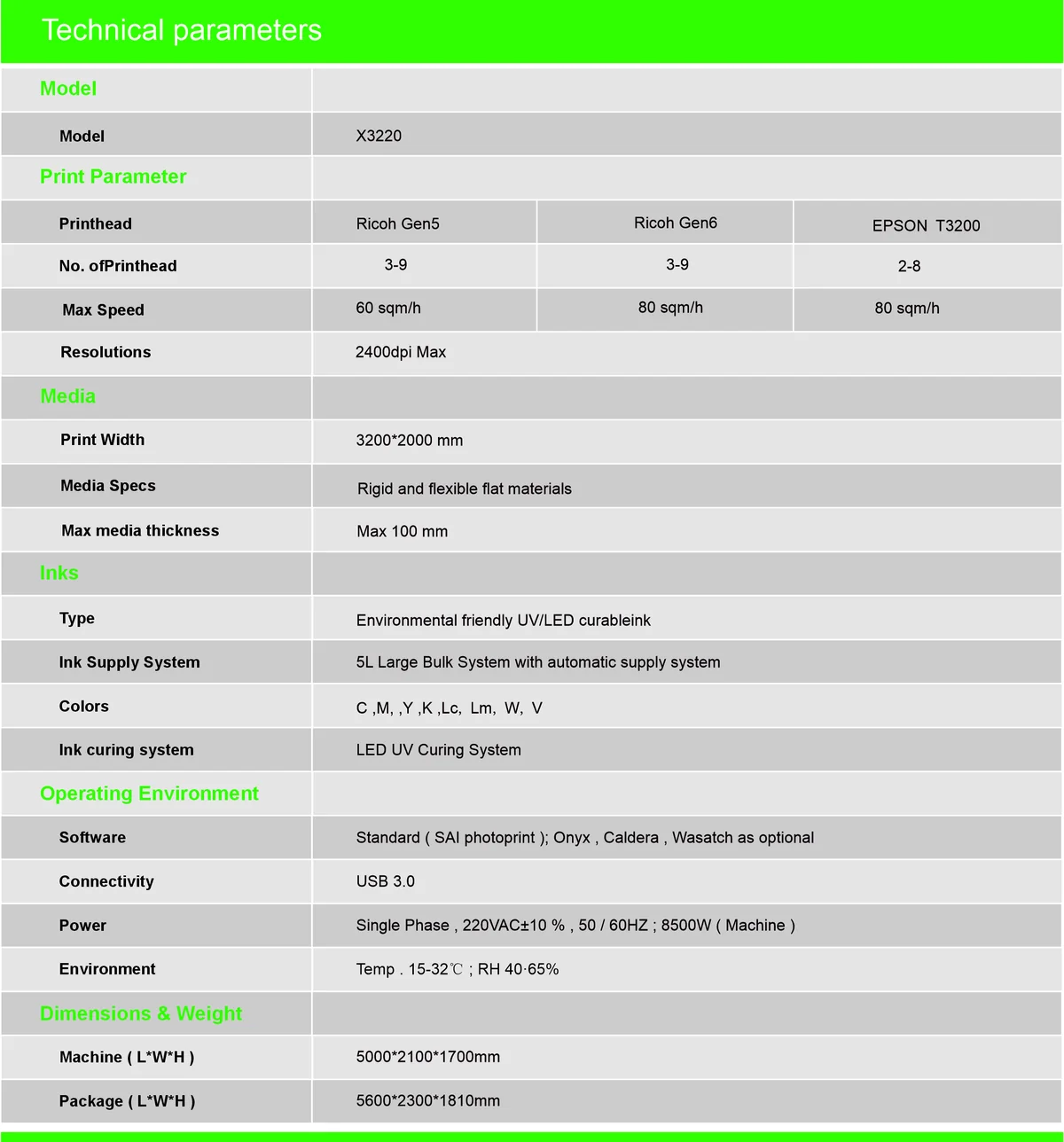

Technical specification

Working area	3200 × 2000 mm
Machine type	Industrial large-format LED UV flatbed printer
Printhead type	Industrial Gen6 printheads, from 2 to 12 printheads in a multi-row configuration
Colour configuration	CMYK + Lc + Lm + White + Varnish
Printing technology	Digital UV flatbed printing, resolution up to 2400 dpi
Curing technology	Liquid-cooled LED UV lamps
Carriage drive	MAGLEV magnetic linear drive
Positioning	Pneumatic positioning pins and automatic media height measurement
Vacuum system	6 independently controlled vacuum zones, 2 vacuum pumps, reverse airflow function and foot pedal control
Layer printing	Simultaneous three-layer printing, colour + white + colour
Supported materials	Wood, glass, metal, dibond, PVC, acrylic, plexiglass, leather, ceramic tiles, corrugated board and other rigid materials up to 100 mm thick
Operating mode	Production and draft modes, printing speed up to 68-76 m²/h

Key features and technology

The machine can be equipped with 2 to 12 industrial Gen6 printheads arranged in a multi-row configuration. This modular setup makes it possible to adapt the printer to the required production capacity, application and colour configuration. A maximum resolution of 2400 dpi provides accurate tonal transitions, sharp details and high-quality graphic reproduction.

The carriage is driven by a MAGLEV magnetic linear drive system. The contact-free design reduces mechanical friction and vibration, improving movement stability during high-speed production. It also supports precise ink droplet placement across the entire printing area.

The printing table is divided into 6 independently controlled vacuum zones powered by two vacuum pumps. This makes it possible to secure both full-size sheets and smaller components positioned in different areas of the table. A reverse airflow function creates an air cushion that helps operators move and remove heavy sheets. The vacuum system can also be activated using a foot pedal.

Pneumatic positioning pins support accurate media alignment, while automatic height measurement allows the printer to work with materials up to 100 mm thick. An anti-collision system protects the printheads against contact with uneven or incorrectly positioned media.

The machine uses liquid-cooled LED UV lamps. The ink is cured immediately during printing, allowing finished components to be moved directly to the next production stage. Reduced heat generation also makes the printer suitable for materials that are more sensitive to high temperatures.

The CMYK + Lc + Lm + White + Varnish configuration provides extensive production capabilities. Light cyan and light magenta improve smooth tonal transitions, white ink supports printing on coloured and transparent substrates, while varnish enables selective finishing effects. The printer also supports simultaneous three-layer printing in a colour + white + colour configuration.

Applications and printing capabilities

Xenons X3220 Big Boy is designed for large-format production where high output, repeatability and direct printing on finished sheets are essential. It is suitable for printing companies, advertising agencies, manufacturing facilities, interior decoration businesses and companies producing signage and display systems.

The printer can print directly on materials including:

wood and wood-based panels used for decorative products, furniture fronts, wall panels and interior components,
glass and acrylic used for decorative panels, display systems, signs and illuminated elements,
metal and dibond panels used for signs, information boards, directional systems and advertising products,
PVC sheets and plexiglass used for stands, lightboxes, decorative elements and point-of-sale materials,
ceramic tiles used in interior design and the production of customised decorative elements,
leather used for decorative products, accessories and personalised components,
corrugated board used for packaging, prototypes, display stands and exhibition materials.

White ink enables printing on dark, coloured and transparent materials. It can be used as an undercoat to improve colour saturation, as an independent printed layer or as part of a multi-layer printing process.

Varnish can be used to create selective finishing effects, glossy areas, highlighted details and decorative textures. This allows the machine to handle both standard production work and more demanding premium projects.

The large working area and printing speed of up to 68-76 m²/h make Xenons X3220 Big Boy suitable for producing advertising boards, large-format signage, decorative panels, furniture components, point-of-sale materials, packaging, display stands and full-size sheets intended for further cutting and processing.
